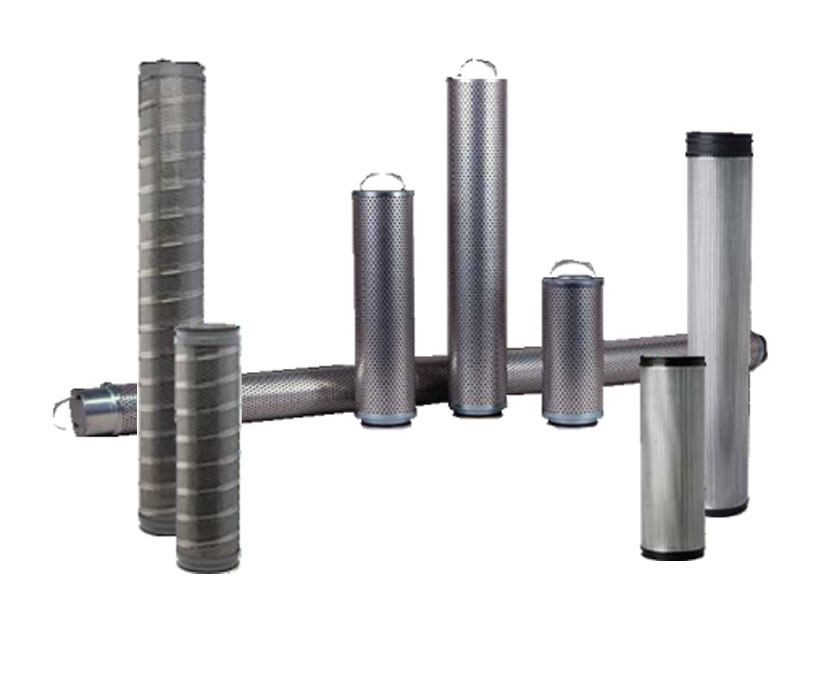

Pall® Athalon™ and Ultipleat® SRT
These filters have long life and provide excellent system protection.
These high-performance cartridge filters feature an advanced pleat pack design that provides high initial cleanliness and dirt holding capacity.
Double wire backed with an epoxy-coated steel mesh for excellent pleat support and spacing, which allows for maximum media area.
Description
| Length | Betax(c) = 1000 Rating | Donaldson Part No. | Competitive Cross Reference | ||||||||||||
| Pall | Hydac | Schroeder | |||||||||||||
| 210 Series | |||||||||||||||
| 4″ (102mm) | < 4 μm | P580592 | UE210AZ04Z | — | — | ||||||||||
| 5 μm | P580593 | UE210AP04Z | — | SBFUE2104Z3V | |||||||||||
| 8 μm | P580594 | UE210AN04Z | — | SBFUE2104Z5V | |||||||||||
| 12 μm | P580595 | UE210AS04Z | — | SBFUE2104Z10V | |||||||||||
| 25 μm | P580596 | UE210AT04Z | — | SBFUE2104Z25V | |||||||||||
| 8” (203mm) | < 4 μm | P580597 | UE210AZ08Z | — | — | ||||||||||
| 5 μm | P580598 | UE210AP08Z | — | SBFUE2108Z3V | |||||||||||
| 8 μm | P580599 | UE210AN08Z | — | SBFUE2108Z5V | |||||||||||
| 12 μm | P580600 | UE210AS08Z | — | SBFUE2108Z10V | |||||||||||
| 25 μm | P580601 | UE210AT08Z | — | SBFUE2108Z25V | |||||||||||
| 13″ (330mm) | < 4 μm | P580602 | UE210AZ13Z | — | — | ||||||||||
| 5 μm | P580603 | UE210AP13Z | — | SBFUE21013Z3V | |||||||||||
| 8 μm | P580604 | UE210AN13Z | — | SBFUE21013Z5V | |||||||||||
| 12 μm | P580605 | UE210AS13Z | — | SBFUE21013Z10V | |||||||||||
| 25 μm | P580606 | UE210AT13Z | — | SBFUE21013Z25V | |||||||||||
| 20″ (508mm) | < 4 μm | P580607 | UE210AZ20Z | — | — | ||||||||||
| 5 μm | P580608 | UE210AP20Z | — | SBFUE21020Z3V | |||||||||||
| 8 μm | P580609 | UE210AN20Z | — | SBFUE21020Z5V | |||||||||||
| 12 μm | P580610 | UE210AS20Z | — | SBFUE21020Z10V | |||||||||||
| 25 μm | P580611 | UE210AT20Z | — | SBFUE21020Z25V | |||||||||||
| 310 Series | |||||||||||||||
| 8” (203mm) | < 4 μm | P580612 | UE310AZ08Z | — | — | ||||||||||
| 5 μm | P580613 | UE310AP08Z | — | SBFUE3108Z3V | |||||||||||
| 8 μm | P580614 | UE310AN08Z | — | SBFUE3108Z5V | |||||||||||
| 12 μm | P580615 | UE310AS08Z | — | SBFUE3108Z10V | |||||||||||
| 25 μm | P580616 | UE310AT08Z | — | SBFUE3108Z25V | |||||||||||
| 13” (330mm) | < 4 μm | P580617 | UE310AZ13Z | — | — | ||||||||||
| 5 μm | P580618 | UE310AP13Z | — | SBFUE31013Z3V | |||||||||||
| 8 μm | P580619 | UE310AN13Z | — | SBFUE31013Z5V | |||||||||||
| 12 μm | P580620 | UE310AS13Z | — | SBFUE31013Z10V | |||||||||||
| 25 μm | P580621 | UE310AT13Z | — | SBFUE31013Z25V | |||||||||||
| 20” (508mm) | < 4 μm | P580622 | UE310AZ20Z | — | — | ||||||||||
| 5 μm | P580623 | UE310AP20Z | — | SBFUE31020Z3V | |||||||||||
| 8 μm | P580624 | UE310AN20Z | — | SBFUE31020Z5V | |||||||||||
| 12 μm | P580625 | UE310AS20Z | — | SBFUE31020Z10V | |||||||||||
| 25 μm | P580626 | UE310AT20Z | — | SBFUE31020Z25V | |||||||||||
| 40” (1016mm) | < 4 μm | P580627 | UE310AZ40Z | — | |||||||||||
| 5 μm | P580628 | UE310AP40Z | — | SBFUE31040Z3V | |||||||||||
| 8 μm | P580629 | UE310AN40Z | — | SBFUE31040Z5V | |||||||||||
| 12 μm | P580630 | UE310AS40Z | — | SBFUE31040Z10V | |||||||||||
| 25 μm | P580631 | UE310AT40Z | — | SBFUE31040Z25V | |||||||||||
| 610 Series | |||||||||||||||
| 20” (508mm) | < 4 μm | P573125 | UE610AZ20Z | 1.22.20D03RT | — | ||||||||||
| 5 μm | P573126 | UE610AP20Z | 1.22.20D05RT | SBFUE61020Z3V | |||||||||||
| 8 μm | P573127 | UE610AN20Z | 1.22.20D07RT | SBFUE61020Z5V | |||||||||||
| 12 μm | P573128 | UE610AS20Z | 1.22.20D12RT | SBFUE61020Z10V | |||||||||||
| 25 μm | P573129 | UE610AT20Z | 1.22.20D20RT | SBFUE61020Z25V | |||||||||||
| 40” (1016mm) | < 4 μm | P573130 | UE610AZ40Z | 1.22.40D03RT | — | ||||||||||
| 5 μm | P573131 | UE610AP40Z | 1.22.40D05RT | SBFUE61040Z3V | |||||||||||
| 8 μm | P573132 | UE610AN40Z | 1.22.40D07RT | SBFUE61040Z5V | |||||||||||
| 12 μm | P573133 | UE610AS40Z | 1.22.40D12RT | SBFUE61040Z10V | |||||||||||
| 25 μm | P573134 | UE610AT40Z | 1.22.40D20RT | SBFUE61040Z25V | |||||||||||
| Donaldson Replacement Filters for Pall® Ultipleat® SRT Housings | |||||||||||||||
| Length | Betax(c) = 1000 Rating | Donaldson Part No. | Competitive Cross Reference | ||||||||||||
| Pall | Hydac | Schroeder | |||||||||||||
| 209 Series | |||||||||||||||
| 4″ (102mm) | 4 μm | P577699 | UE209AZ03Z | 1.27.03 D 03 RT | SBFUE209-3Z3V | ||||||||||
| 5 μm | P577700 | UE209AP03Z | 1.27.03 D 05 RT | SBFUE209-3Z5V | |||||||||||
| 8 μm | P577701 | UE209AN03Z | 1.27.03 D 07 RT | SBFUE209-3Z5V | |||||||||||
| 12 μm | P577702 | UE209AS03Z | 1.27.03 D 12 RT | SBFUE209-3Z10V | |||||||||||
| 25 μm | P577703 | UE209AT03Z | 1.27.03 D 20 RT | SBFUE209-3Z25V | |||||||||||
| 8” (203mm) | 4 μm | P577704 | UE209AZ07Z | 1.27.07 D 03 RT | SBFUE209-7Z3V | ||||||||||
| 5 μm | P577705 | UE209AP07Z | 1.27.07 D 05 RT | SBFUE209-7Z5V | |||||||||||
| 8 μm | P577706 | UE209AN07Z | 1.27.07 D 07 RT | SBFUE209-7Z5V | |||||||||||
| 12 μm | P577707 | UE209AS07Z | 1.27.07 D 12 RT | SBFUE209-7Z10V | |||||||||||
| 25 μm | P577708 | UE209AT07Z | 1.27.07 D 20 RT | SBFUE209-7Z25V | |||||||||||
| 219 Series | |||||||||||||||
| 4″ (102mm) | < 4 μm | P573085 | UE219AZ04H or Z | 1.28.04 D 03 RT | SBFUE219-4Z3V | ||||||||||
| 5 μm | P573086 | UE219AP04H or Z | 1.28.04 D 05 RT | SBFUE219-4Z5V | |||||||||||
| 8 μm | P573087 | UE219AN04H or Z | 1.28.04 D 07 RT | — | |||||||||||
| 12 μm | P573088 | UE219AS04H or Z | 1.28.04 D 12 RT | SBFUE219-4Z10V | |||||||||||
| 25 μm | P573089 | UE219AT04H or Z | 1.28.04 D 20 RT | SBFUE219-4Z25V | |||||||||||
| 8” (203mm) | < 4 μm | P573090 | UE219AZ08H or Z | 1.28.08 D 03 RT | SBFUE219-8Z3V | ||||||||||
| 5 μm | P573091 | UE219AP08H or Z | 1.28.08 D 05 RT | SBFUE219-8Z5V | |||||||||||
| 8 μm | P573092 | UE219AN08H or Z | 1.28.08 D 07 RT | — | |||||||||||
| 12 μm | P573093 | UE219AS08H or Z | 1.28.08 D 12 RT | SBFUE219-8Z10V | |||||||||||
| 25 μm | P573094 | UE219AT08H or Z | 1.28.08 D 20 RT | SBFUE219-8Z25V | |||||||||||
| 13″ (330mm) | < 4 μm | P573095 | UE219AZ13H or Z | 1.28.13 D 03 RT | SBFUE219-13Z3V | ||||||||||
| 5 μm | P573096 | UE219AP13H or Z | 1.28.13 D 05 RT | SBFUE219-13Z5V | |||||||||||
| 8 μm | P573097 | UE219AN13H or Z | 1.28.13 D 07 RT | — | |||||||||||
| 12 μm | P573098 | UE219AS13H or Z | 1.28.13 D 12 RT | SBFUE219-13Z10V | |||||||||||
| 25 μm | P573099 | UE219AT13H or Z | 1.28.13 D 20 RT | SBFUE219-13Z25V | |||||||||||
| 20″ (508mm) | < 4 μm | P573100 | UE219AZ20H or Z | 1.28.20 D 03 RT | SBFUE219-20Z3V | ||||||||||
| 5 μm | P573101 | UE219AP20H or Z | 1.28.20 D 05 RT | SBFUE219-20Z5V | |||||||||||
| 8 μm | P573102 | UE219AN20H or Z | 1.28.20 D 07 RT | — | |||||||||||
| 12 μm | P573103 | UE219AS20H or Z | 1.28.20 D 12 RT | SBFUE219-20Z10V | |||||||||||
| 25 μm | P573104 | UE219AT20H or Z | 1.28.20 D 20 RT | SBFUE219-20Z25V | |||||||||||
| 299 Series | |||||||||||||||
| 4″ (102mm) | 2 μm | P577715 | UE299AZ04Z | 1.24.04 D 03 RT | — | ||||||||||
| 5 μm | P577716 | UE299AP04Z | 1.24.04 D 05 RT | — | |||||||||||
| 8 μm | P577717 | UE299AN04Z | 1.24.04 D 07 RT | — | |||||||||||
| 12 μm | P577718 | UE299AS04Z | 1.24.04 D 12 RT | — | |||||||||||
| 25 μm | P577719 | UE299AT04Z | 1.24.04 D 20 RT | — | |||||||||||
| 8” (203mm) | 2 μm | P577720 | UE299AZ08Z | 1.24.08 D 03 RT | — | ||||||||||
| 5 μm | P577721 | UE299AP08Z | 1.24.08 D 05 RT | — | |||||||||||
| 8 μm | P577722 | UE299AN08Z | 1.24.08 D 07 RT | — | |||||||||||
| 12 μm | P577723 | UE299AS08Z | 1.24.08 D 12 RT | — | |||||||||||
| 25 μm | P577724 | UE299AT08Z | 1.24.08 D 20 RT | — | |||||||||||
| 13″ (330mm) | 2 μm | P577725 | UE299AZ13Z | 1.24.13 D 03 RT | — | ||||||||||
| 5 μm | P577726 | UE299AP13Z | 1.24.13 D 05 RT | — | |||||||||||
| 8 μm | P577727 | UE299AN13Z | 1.24.13 D 07 RT | — | |||||||||||
| 12 μm | P577728 | UE299AS13Z | 1.24.13 D 12 RT | — | |||||||||||
| 25 μm | P577729 | UE299AT13Z | 1.24.13 D 22 RT | — | |||||||||||
| 20″ (508mm) | 2 μm | P577730 | UE299AZ20Z | 1.24.20 D 03 RT | — | ||||||||||
| 5 μm | P577731 | UE299AP20Z | 1.24.20 D 05 RT | — | |||||||||||
| 8 μm | P577732 | UE299AN20Z | 1.24.20 D 07 RT | — | |||||||||||
| 12 μm | P577733 | UE299AS20Z | 1.24.20 D 12 RT | — | |||||||||||
| 25 μm | P577734 | UE299AT20Z | 1.24.20 D 22 RT | — | |||||||||||
| Length | Betax(c) = 1000 Rating | Donaldson Part No. | Competitive Cross Reference | ||||||||||||
| Pall | Hydac | Schroeder | |||||||||||||
| 319 Series | |||||||||||||||
| 8″ (203mm) | < 4 μm | P573105 | UE319AZ08H or Z | 1297074 or 1.21.08D03RT | SBFUE319-8Z3V | ||||||||||
| 5 μm | P573106 | UE319AP08H or Z | 1296464 or 1.21.08D05RT | SBFUE319-8Z5V | |||||||||||
| 8 μm | P573107 | UE319AN08H or Z | 1296465 or 1.21.08D07RT | — | |||||||||||
| 12 μm | P573108 | UE319AS08H or Z | 1297075 or 1.21.08D12RT | SBFUE319-8Z10V | |||||||||||
| 25 μm | P573109 | UE319AT08H or Z | 1.21.08 D 20 RT | SBFUE319-8Z25V | |||||||||||
| 13″ (330mm) | < 4 μm | P573110 | UE319AZ13H or Z | 1297076 or 1.21.13D03RT | SBFUE319-13Z3V | ||||||||||
| 5 μm | P573111 | UE319AP13H or Z | 1296466 or 1.21.13D05RT | SBFUE319-13Z5V | |||||||||||
| 8 μm | P573112 | UE319AN13H or Z | 1296467 or 1.21.13D07RT | — | |||||||||||
| 12 μm | P573113 | UE319AS13H or Z | 1297077 or 1.21.13D12RT | SBFUE319-13Z10V | |||||||||||
| 25 μm | P573114 | UE319AT13H or Z | 1.21.13 D 20 RT | SBFUE319-13Z25V | |||||||||||
| 20″ (508mm) | < 4 μm | P573115 | UE319AZ20H or Z | 1297078 or 1.21.20D03RT | SBFUE319-20Z3V | ||||||||||
| 5 μm | P573116 | UE319AP20H or Z | 1296468 or 1.21.20D05RT | SBFUE319-20Z5V | |||||||||||
| 8 μm | P573117 | UE319AN20H or Z | 1296469 or 1.21.20D07RT | — | |||||||||||
| 12 μm | P573118 | UE319AS20H or Z | 1297079 or 1.21.20D12RT | SBFUE319-20Z10V | |||||||||||
| 25 μm | P573119 | UE319AT20H or Z | 1.21.20 D 20 RT | SBFUE319-20Z25V | |||||||||||
| 40” (1016mm) | < 4 μm | P573120 | UE319AZ40H or Z | 1297080 or 1.21.40D03RT | SBFUE319-40Z3V | ||||||||||
| 5 μm | P573121 | UE319AP40H or Z | 1296665 or 1.21.40D05RT | SBFUE319-40Z5V | |||||||||||
| 8 μm | P573122 | UE319AN40H or Z | 1296666 or 1.21.40D07RT | — | |||||||||||
| 12 μm | P573123 | UE319AS40H or Z | 1297083 or 1.21.40D12RT | SBFUE319-40Z10V | |||||||||||
| 25 μm | P573124 | UE319AT40H or Z | 1.21.40 D 20 RT | SBFUE319-40Z25V | |||||||||||
| 619 Series | |||||||||||||||
| 20″ (508mm) | < 4 μm | P573125 | UE619AZ20H or Z | 1297084 or 1.22.20D03RT | SBFUE619-20Z3V | ||||||||||
| 5 μm | P573126 | UE619AP20H or Z | 1296470 or 1.22.20D05RT | SBFUE619-20Z5V | |||||||||||
| 8 μm | P573127 | UE619AN20H or Z | 1296471 or 1.22.20D07RT | — | |||||||||||
| 12 μm | P573128 | UE619AS20H or Z | 1297085 or 1.22.20D12RT | SBFUE619-20Z10V | |||||||||||
| 25 μm | P573129 | UE619AT20H or Z | 1.22.20 D 20 RT | SBFUE619-20Z25V | |||||||||||
| 40″ (1016mm) | < 4 μm | P573130 | UE619AZ40H or Z | 1297086 or 1.22.40D03RT | SBFUE619-40Z3V | ||||||||||
| 5 μm | P573131 | UE619AP40H or Z | 1296472 or 1.22.40D05RT | SBFUE619-40Z5V | |||||||||||
| 8 μm | P573132 | UE619AN40H or Z | 1296473 or 1.22.40D07RT | — | |||||||||||
| 12 μm | P573133 | UE619AS40H or Z | 1297087 or 1.22.40D12RT | SBFUE619-40Z10V | |||||||||||
| 25 μm | P573134 | UE619AT40H or Z | 1.22.40 D 20 RT | SBFUE619-40Z25V | |||||||||||
